PMRV030/040 Double-Stage Worm Gearbox | Two-Stage Worm Reducer | Ratio 300-5000:1
PMRV030/040 | Double-Stage Worm Gearbox | Ultra-High Reduction Two-Stage Reducer
The PMRV030/040 double-stage worm gearbox connects two worm stages in series to achieve reduction ratios of 300-5000:1 | beyond the reach of any single-stage gear unit. Delivers ratios from 300 to 5,000:1 with output torques approaching 338 Nm | combining PMRV030 and PMRV040 stages in series for ultra-high reduction in automation and robotics.

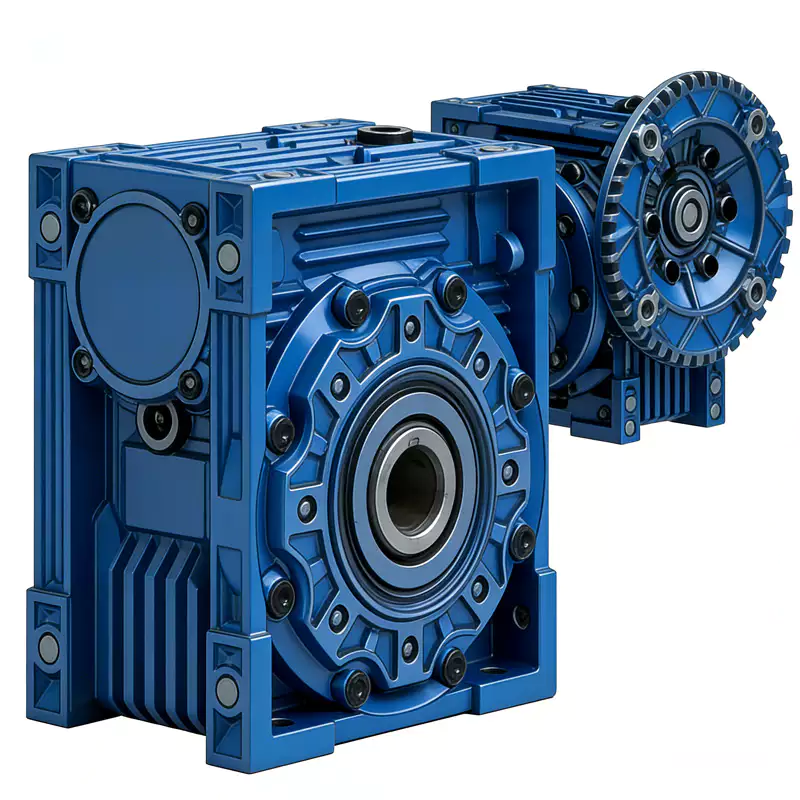

The PMRV030/040 | two PMRV worm stages combined for ultra-high reduction ratios in a compact aluminium housing.
📈 Product Overview | PMRV030/040 Double-Stage Worm Gearbox
The PMRV030/040 double-stage worm gearbox (also: two-stage worm reducer, double worm gearbox, high-ratio worm gear unit) achieves ratios from 300-5000:1 and output torques up to 338 Nm.
This configuration is the preferred solution for applications demanding extremely slow output speeds | solar panel trackers, valve actuators, automated gates, and precision positioning systems | where a single worm stage cannot achieve the required reduction.
📋 Technical Specifications
| Parameter | Value |
|---|---|
| Combined Ratio Range (i) | 300-5000 |
| Max Output Torque (M2) | 338 Nm |
| Max Radial Load Fr2 | 3,490 N |
| Max Input Power (P1) | 0.09 kW |
| First Stage | PMRVPMRV030 |
| Second Stage | PMRV040 |
| Housing Material | Die-Cast Aluminium (both stages) |
| Worm Wheel Material | Phosphor Bronze CuSn10P (both stages) |
| Lubrication | Synthetic ISO VG320 in each stage |
| Mounting Positions | AS1, AS2, VS1, VS2, BS1, BS2, PS1, PS2 |
| Certifications | ISO 9001:2015, CE |
Two worm stages in series: output of the first stage drives the input worm of the second stage, multiplying reduction ratios multiplicatively.
⚙️ Working Principle
The motor drives the first worm stage (PMRVPMRV030), producing intermediate speed at the first-stage output. This intermediate shaft connects to the input worm of the second stage (PMRV040), further reducing speed and multiplying torque to the output shaft. Total ratio: i_total = i? | i?. Output torque: M2 = M1 | i? | i? | |? | |?. Both stages are worm type, so combined efficiency is lower than single-stage, but self-locking from both stages ensures excellent load holding without brakes.
⚡ Core Advantages
|
🔢
Ultra-High Reduction Ratios Ratios of 300-5000:1 are impossible in a single worm stage | the PMRV030/040 makes extreme reduction practical and affordable. |
🔒
Double Self-Locking Both worm stages provide inherent self-locking, delivering exceptional load holding without supplementary braking devices. |
|
📦
Compact Two-Stage Package Two worm stages integrated in a single compact assembly eliminate additional shafting, couplings, and mounting structures. |
💰
Cost-Effective High Ratio Modular combination of standard PMRV components avoids the cost of custom high-ratio single-stage gearboxes. |
|
⚙️
Standard PMRV Components Both stages use the same precision-manufactured PMRV worm gear sets | global spare part availability and simplified maintenance. |
🔧
Multiple Mounting Positions Supports eight standard mounting positions (AS1, AS2, VS1, VS2, BS1, BS2, PS1, PS2) for maximum installation flexibility. |
|
🌎
Proven Global Deployment Double-stage worm gearboxes are deployed in solar farms, water treatment, and manufacturing lines across six continents. |
📈
Easy Service Access Each stage has independent oil fill, drain, and level check points | maintenance without stage disassembly. |
Factory assembly of PMRV-PMRV double-stage units: both worm stages are factory-tested together before dispatch.
🏭 Structure & Material Craftsmanship
First Stage (PMRVPMRV030): Identical to the standalone PMRVPMRV030 | die-cast aluminium housing, phosphor bronze worm wheel, case-hardened worm shaft, precision bearings, IEC motor flange. Second Stage (PMRV040): Full PMRV040 body | all construction features of the standalone PMRV040. Worm shaft driven by first-stage output via precision coupling adapter. Inter-Stage Coupling: Precision-machined adapter, concentricity within 0.02 mm, no backlash at stage junction. Factory Assembly: Both stages aligned and assembled on precision fixture, CMM-inspected, then run-in and load-tested as a unit before shipment. Lubrication: Each stage has its own oil sump | always refer to the lubrication table for correct fill volumes per stage and per mounting position.
🎯 Typical Application Scenarios
|
☀️
Solar Panel Tracking Single- and dual-axis solar trackers use the PMRV030/040's extreme self-locking ratios to maintain panel angle under wind loads without holding brakes. |
🔌
Valve Actuators The ultra-high ratio of the PMRV030/040 provides enough mechanical advantage to open large industrial valves with minimal motor power. |
|
🚪
Automated Gate & Door Drives Slow-speed automated gates and industrial shutters rely on double-worm self-locking to maintain position without power. |
🔬
Precision Positioning Tables Scientific instruments, optical systems, and precision assembly jigs use the fine angular resolution for accurate slow-speed positioning. |
|
🌊
Water Treatment Equipment Sludge scrapers, rotating drum screens, and filter belt drives operate at ultra-slow speeds achievable only with multi-stage reducers. |
🎪
Stage & Theatrical Equipment Slowly rotating stage platforms and revolving scenic elements use the unit for whisper-quiet, safe slow-speed actuation. |
🔎 Selection Guide
| Requirement | Recommendation |
|---|---|
| Determine required total ratio | i_total = n1 / n2. Use the PMRV-PMRV parameter table to find i? and i? combinations that achieve i_total. PMRV030/040 supports 300-5000:1. |
| Verify output torque sufficiency | Confirm M2 in the parameter table at your ratio exceeds required torque | service factor. Max available M2: 338 Nm. |
| Check radial load on output shaft | Output shaft radial load must not exceed 3,490 N at the shaft midpoint. Use Frx formula for off-centre load positions. |
| Select mounting position | Choose from eight standard mounting positions and fill each stage with the oil quantity specified for that position. |
| Service factor and duty cycle | Apply the service factor chart (operating hours/day | load type). Recommend f.s. |1.5 for heavy shock load applications. |
| Input motor selection | The PMRV030/040 input accepts motors compatible with PMRVPMRV030. Refer to the motor mounting table for compatible IEC frame sizes. |
🏆 Quality Certifications & Service Commitment
|
✅
ISO 9001:2015 Certified Manufacturing processes certified under international quality management standards, ensuring consistency across every unit. |
🇪🇺
CE Marked Full compliance with European Machinery Directive 2006/42/EC, enabling direct sale and use across EU member states. |
|
🔨
Custom Engineering OEM/ODM: shaft dimensions, flange configs, mounting positions, and finishes tailored on request. |
🚚
Global Logistics Partnerships with major freight forwarders ensure safe, on-time delivery to 80+ countries with full export documentation. |
|
📈
24-Month Warranty Every gearbox covered by a 24-month warranty against manufacturing defects, backed by responsive after-sales engineering support. |
📞
Technical Support Dedicated engineering team available for selection assistance, custom specifications, and field troubleshooting worldwide. |
❓ Frequently Asked Questions
Q: Why use PMRV030/040 instead of a single stage?
A: Single PMRV worm stages are limited to 100:1. The PMRV030/040 achieves 300-5000:1 by multiplying two stages in series | impossible in a single stage without extreme customisation.
Q: Does double-stage affect efficiency?
A: Overall efficiency is the product of both stage efficiencies | lower than a single stage, but acceptable for the very slow output speeds required in positioning, solar tracking, and valve actuation.
Q: Is the unit self-locking?
A: Yes. Both worm stages independently self-lock, and the combined unit provides very strong load holding, virtually eliminating any back-drive risk under normal loads.
Q: How are the two stages lubricated?
A: Each stage has its own oil compartment with dedicated fill and drain plugs. Refer to the lubrication table for oil quantities at each mounting position.
Q: What motor frames are compatible?
A: The input stage (PMRVPMRV030) accepts motor frames as listed in the PMRV motor mounting table. Refer to the catalogue motor mounting dimensions for compatible IEC frame sizes.
🌎 Case Studies | Engineer Field Notes
🇩🇪 Germany
Application: Automotive assembly conveyor systems
The PMRV series arrived precisely to spec. The aluminium die-cast housing is impressively rigid, and after 18 months of 3-shift operation we have had zero failures. Our procurement team now uses this supplier exclusively.
🇺🇸 United States
Application: Food-grade packaging line drives
Synthetic oil fill and the smooth surface finish made FDA audits straightforward. The gearboxes run quietly and maintain ratio accuracy even after 10,000 operating hours.
🇮🇳 India
Application: Textile spinning frame drives
We replaced three competitor brands with PMRV063 units and saw maintenance calls drop by over 60%. The torque arms for hollow-bore units were also well-engineered and simple to fit.
🇮🇹 Italy
Application: Bottling machine conveyor drives
IEC flanges aligned perfectly with our Siemens motor range. The broad ratio selection meant we could standardise on one gearbox family across our entire machine lineup | a huge inventory simplification.
🇧🇷 Brazil
Application: Agricultural irrigation pump drives
Despite harsh outdoor conditions | high humidity, dust, UV | the sealed aluminium housing and quality seals kept lubricant in and contamination out. Highly recommended for outdoor industrial duty.
🇦🇺 Australia
Application: Mining conveyor belt tensioning systems
The two-stage PMRV-PMRV units gave us the extreme reduction ratios we needed without resorting to expensive custom gearboxes. The technical support team helped with selection | very responsive.
